Refactoring the script

Note

For versions 2019/2020 LTS, download the Visual Scripting package from the Unity Asset Store.

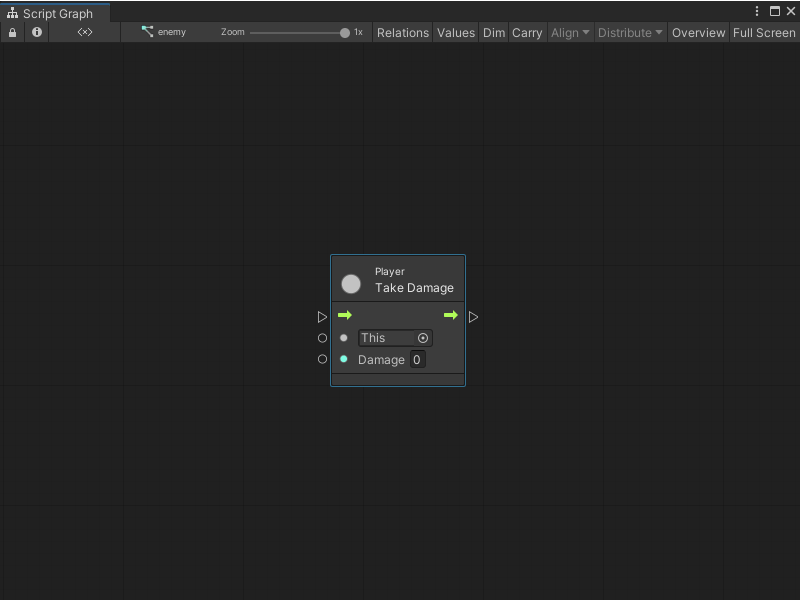

Visual scripting automatically calls methods, fields and properties from any custom script in the project. For example, you can create a node from a custom Player class with a TakeDamage method.

    using UnityEngine;

    public class Player : MonoBehaviour
    {
        public void TakeDamage(int damage)
        {
            // ...
        }
    }

In the script graph, if you change your script and rename or remove the TakeDamage method or the Player class, such as in the example below:

    using UnityEngine;

    public class Player : MonoBehaviour
    {
        public void InflictDamage(int damage)
        {
            // ...
        }
    }

The node turns red in the graph window and a warning appears in the Graph Inspector:

Renaming Members

To continue the previous example, to fix the failure, reopen the script file and map the new name to the previous name with the [RenamedFrom] attribute. It takes a single string parameter,... that is the previous name of the member.

    using UnityEngine;
    using Unity.VisualScripting;

    public class Player : MonoBehaviour
    {
        [RenamedFrom("TakeDamage")]
        public void InflictDamage(int damage)
        {
            // ...
        }
    }

It is recommended to leave the attribute in your source even after a successful recompile. Visual scripting cannot guarantee Unity reserializes all the graphs with the corrected name. Visual scripting's [RenamedFrom] attribute works much like Unity's own [FormerlySerializedAs] attribute in that regard.

Renaming Types

You can rename types (including classes, structs and enums) using the [RenamedFrom] attribute.

For example, Player class is renamed to Character:

    using UnityEngine;
    using Unity.VisualScripting;

    [RenamedFrom("Player")]
    public class Character : MonoBehaviour
    {
        [RenamedFrom("TakeDamage")]
        public void InflictDamage(int damage)
        {
            // ...
        }
    }

Note

The old name must include the namespace. In the previous example, this wasn't required as the name was in the global namespace.
